Antenna Magus Export:
Export designed antennas to CST MICROWAVE STUDIO®
and FEKO
Engineers spend a lot of time becoming proficient in the use of EM analysis tools. Even experts may spend hours setting up models correctly before beginning with any form of useful analysis. Antenna Magus' export functionality allows more time to be spent on antenna design and less time to be spent on mastering simulation software. Antenna Magus generates a parametric and "ready to run" model of the user's designed antenna which can be saved in the correct file format. Each model is validated against reference data or measurements.

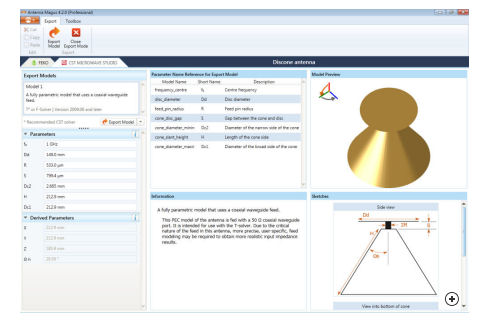

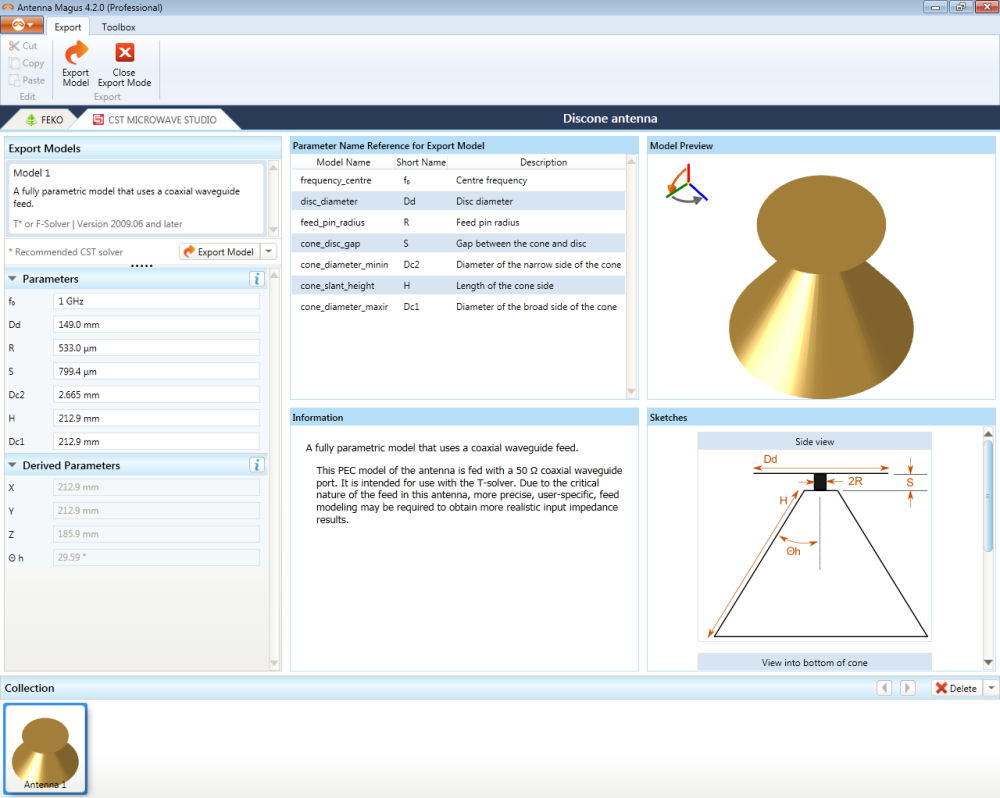

Example of the export view in Antenna Magus
"More than half of the effort with setting up an antenna for analysis goes into the non-geometrical aspects like choosing the correct feed mechanism or specifying the boundary conditions etc."
Simulation tools like FEKO and CST MICROWAVE STUDIO® regularly release new features and implement new technology which can radically improve simulation performance for specific problems. These features still need to be understood and applied before they can be used to improve the simulation of antennas. Antenna Magus helps to manage this problem by updating and modifying existing models to include relevant additions as CST MICROWAVE STUDIO and FEKO undergo changes and improvements. These updates are released regularly to ensure that the latest, best methods are used to analyse antennas.
Some of the antenna models have various export options. These export options exploit the different modeling approaches that are available in the EM analysis tool. Each export includes useful information about the model like local meshing, variable dependencies, labels and region properties etc.
Exporting from Antenna Magus saves valuable time which allows engineers (experts and novices) to focus more time and energy on meeting final design requirements.

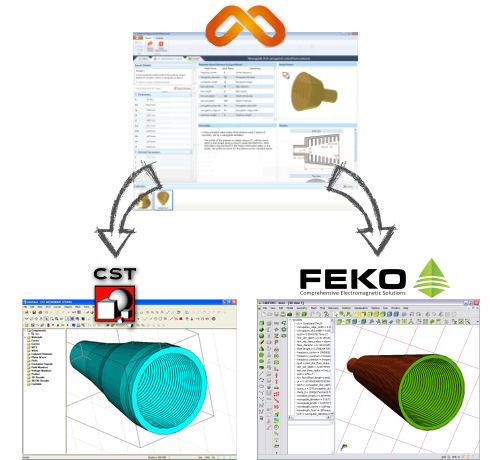

Conical Corrugated
Horn export
