Antenna Magus Explore:
Explore Antenna Magus' antenna database

Antenna Magus is the most extensive antenna synthesis tool available on the market today. Its huge database of over 300 antennas can be explored to choose the optimal topology, which can be designed to meet the system criteria and exported to seamlessly integrate with your design workflow. Antenna Magus integrates with market leaders in EM simulation like FEKO, CST MICROWAVE STUDIO® and AWR DESIGN ENVIRONMENT®

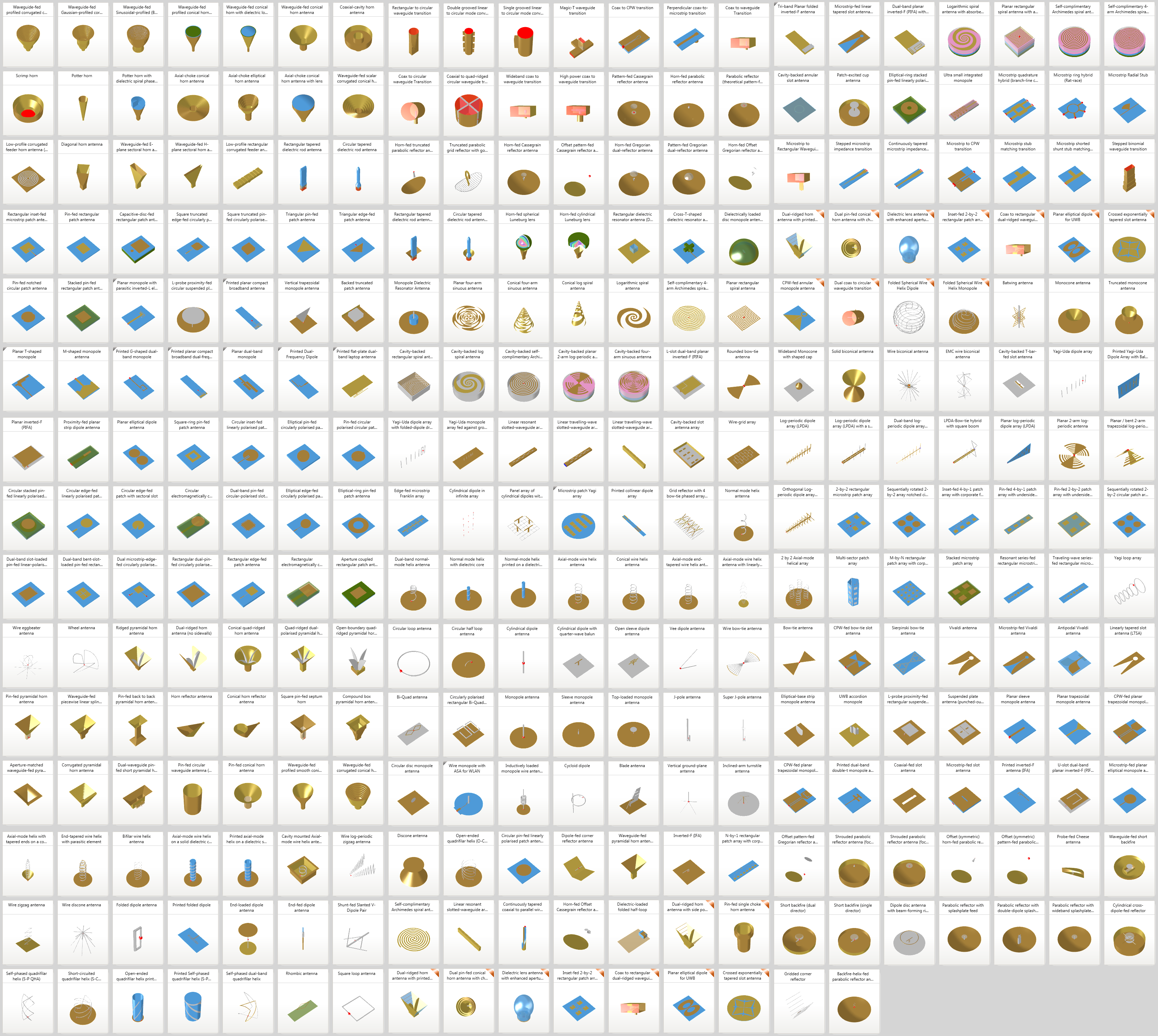

Antenna Magus boasts over 300 antennas - the largest commercially available database of antenna designs in the world. Click on the image to view all of them.

Antenna Magus has rapidly established itself as the new standard in antenna design and synthesis, offering designers an unmatched combination of flexible design capabilities, concise and accessible information (including references to relevant literature and research resources) and exportable simulation models.

Example of antenna information presented in Antenna Magus

A successful antenna design should produce an element that is insensitive to manufacturing tolerances and is cost-effective to produce. Selecting the correct element as early in the design cycle as possible minimises the risk of exceeding budget and time constraints during later stages of the design and production process. Adapting an existing design, or searching for a new element in text books and published papers is no longer the most effective way to make this crucial selection. Antenna Magus has been designed to present information in a manner that enables engineers to consider various options with minimal time and effort - before zooming in on one or two promising topologies. During the early design phase, the synthesis feature can be used to learn about the expected size and physical parameters of various designs and topologies.

Browsing the antennas in the database gives invaluable insight into 'building blocks' and concepts that the antenna engineer can use to assemble new antenna topologies.

Click here to see the complete list of antennas included in the Antenna Magus database.
