Ultra-small integrated monopole

Image of the Ultra-small integrated monopole.

The ultra small integrated monopole for integrated WLAN applications has been reduced by 70% when compared to a normal printed monopole. Structures such as this one - based on an ultra slow-wave transmission line design - have received significant attention as a way to reduce the size of passive components. The antenna consists of a cascade of 5 unit cells of the ultra slow-wave transmission line without the metal ground plane, where each unit cell consists of three layers - a patch on the bottom layer and inductive loops on the other layers - all connected with vias.

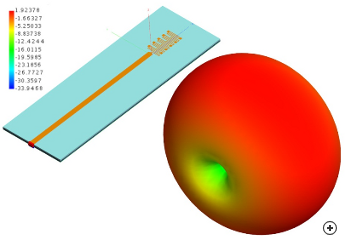

Typical 3D radiation pattern at the centre frequency.
Typical S11 performance of the antenna.
